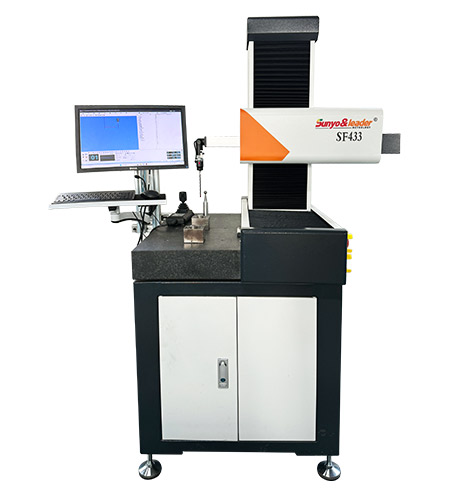

The SF series is a high-performance workshop-type measuring machine that does not require compressed air. It comes with a complete set of protective covers and dust shields, making it suitable for a wider range of workshop temperature environments.
MACHINE Features:
• High-performance workshop-type measuring machine, no compressed air required.
• Equipped with a full set of protective covers and dust shields, suitable for use in complex workshop environments.
• Maintains high-precision measurements within a temperature range of 15-30 degrees Celsius, making it suitable for a wide range of workshop temperature conditions.
• Cantilever structure with three open sides, providing excellent accessibility for loading, unloading, and programming operations.
• Control cabinet integrated into the machine base, reducing floor space requirements and facilitating movement with in the workshop.
• Optional temperature sensor.
• Optional automation software and hardware interfaces.
| Model | SF433 | SF454 | SF575 | SF433P | SF454P | SF575P |
| Measurement Range(mm) | 400X300X300 | 400X500X400 | 500X700X500 | 400X300X300 | 400X500X400 | 500X700X500 |
| Overall Size(mm) | 845X1000X1650 | 1173X1305X2270 | 1273X1505X2470 | 845X1000X1650 | 1173X1305X2270 | 1273X1505X2470 |
| Max.Speed(mm/s) | 500 | |||||
| Max.Acceleration(mm/s) | 800 | |||||
| Length measurement error (μm)18C-22℃ | 3.0+3L/1000 | 2.5+3L/1000 | ||||
| Length measurement error (μm)16℃-26C Load Bearing (kg) | 3.0+L/250 | 2.5+L/250 | ||||
| Length measurement error (μm)15℃-30℃ | 3.0+L/200 | 2.5+L/200 | ||||
