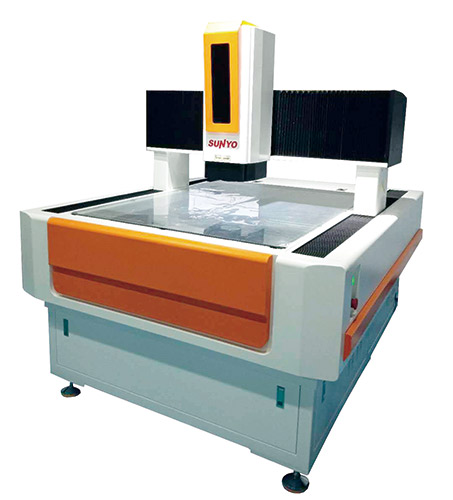

SLG MACHINE Features:
• Movable gantry structure for large-scale fully automatic measurement with four-axis CNC control.
• Stable and reliable granite machine base, providing smooth movement.
• All-mouse and joystick operation for simplicity and ease of use.
• Open metal grating rulers for high accuracy and stability.
• Stepless automatic zoom optical lens.
• Programmable 5-ring 8-direction 40-zone circular surface illumination, LED contour illumination, and coaxial illumination.
• Automatic autofocus and height measurement, with the option to install contact probes or laser scanning probes.
• Multiple standard configuration options are available, and customization is possible based on specific requirements.
| Model | SLG452 | SLG672 | SLG8102 | SLG10122 | SLG12162 | SLG15202 | SLG20302 | |
| Measurement Range(mm)* | 400×500×200 | 600×700×200 | 800×1000×200 | 1000×1200×200 | 1200×1600×200 | 1500×2000×200 | 2000×3000×200 | |
| Overall Size | 1110×1530×1760 | 1385×1730×1860 | 1585×2050×1860 | 1885×2350×1860 | 2075×2630×1860 | 2400×3500×1860 | 2900×4700×1860 | |
| Weight(kg) | 880 | 1360 | 1680 | 2400 | 2800 | 5500 | 8000 | |
| Load Bearing(kg) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Measurement Accuracy (μm) | XY axis | E2=(3.0+L/200) | E2=(3.5+L/200) | E2=(4.0+L/200) | E2=(4.5+L/200) | E2=(5.0+L/200) | E2=(6.0+L/200) | E2=(7.0+L/200) |
| Z axis** | E1=(5.0+L/200) | |||||||
| Speed | XY axis | 400mm/S | ||||||
| Z axis | 100mm/S | |||||||
| Linear Encoder | 0.5μm HEIDENHAIN / RENISHAW | |||||||
| Rail | HIWIN | |||||||
| Image Sensor | HD color industrial camera | |||||||
| Illuminant ** | Profile | LED cold light source, 256 levels of brightness (adjustable) | ||||||
| Surface | 5 rings, 8 zones, LED cold light source, independent control of each segment, 256 levels of brightness (adjustable) | |||||||
| Optical Lens | 6.5:1 continuous zoom | |||||||
| Magnification*** | Optical magnification: 0.7~4.5 X; Image magnification: 22~180 X | |||||||
| Optional Functions | MCP/PH6 Manual Probe（RENISHAW） | |||||||
| Laser probe（KEYENCE） | ||||||||
| Software | VMM Measurement software (CNC version) | |||||||
| Movement System | AC servo system /CNC DC servo system | |||||||
| Working Conditions | Temperature 20℃±3℃，Temperature Change＜2℃/h，Humidity 30~80% | |||||||
| Vibration＜0.002 g，less than 15 Hz | ||||||||
| Power Source | 220-240 V，50-60 Hz，Single phase，800 W | |||||||
| Model | SLG PLUS 452 | SLG PLUS 672 | SLG PLUS 8102 | SLG PLUS 10122 | SLG PLUS 12162 | SLG PLUS 15202 | SLG PLUS 20302 | |
| Measurement Range(mm)* | 400×500×250 | 600×700×250 | 800×1000×250 | 1000×1200×250 | 1200×1600×250 | 1500×2000×250 | 2000×3000×250 | |
| Overall Size | 1110×1530×1860 | 1385×1730×1960 | 1585×2050×1960 | 1885×2350×1960 | 2075×2630×1960 | 2400×3500×1960 | 2900×4700×1960 | |
| Weight(kg) | 880 | 1360 | 1680 | 2400 | 2800 | 5500 | 8000 | |
| Load Bearing(kg) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| Measurement Accuracy (μm) | XY axis | E2=(2.5+L/200) | E2=(2.5+L/200) | E2=(3.0+L/200) | E2=(4.0+L/200) | E2=(4.0+L/200) | E2=(5.0+L/200) | E2=(6.0+L/200) |
| Z axis | E1=(5.0+L/200) | |||||||
| Speed | XY axis | 500mm/S | ||||||
| Z axis** | 100mm/S | |||||||
| Linear Encoder | 0.1μm /0.05μmHEIDENHAIN / RENISHAW | |||||||
| Rail | THK/REXROTH | |||||||
| Image Sensor | HD color industrial camera | |||||||
| Illuminant | Profile | LED cold light source, 256 levels of brightness (adjustable) | ||||||
| Surface | 5 rings, 8 zones, LED cold light source, independent control of each segment, 256 levels of brightness (adjustable) | |||||||
| Optical Lens | 13.3:1 continuous zoom | |||||||
| Magnification*** | Optical magnification: 0.6~8.0 X; Image magnification: 28~360 X | |||||||
| Optional Functions | MCP/PH6 Manual Probe（RENISHAW） | |||||||
| Laser probe（KEYENCE） | ||||||||
| Software | VMM Measurement software (CNC version) | |||||||
| Movement System | 4 axis CNC servo control system (X, Y, Z, Zoom) | |||||||
| Working Conditions | Temperature 20℃±2℃，Temperature Change＜1℃/h，Humidity 30~80% | |||||||
| Vibration＜0.002 g，less than 15 Hz | ||||||||
| Power Source | 220-240 V，50-60 Hz，Single phase，800 W | |||||||
* Z-axis can be increased to 500 mm. Customization options: 1200×****×200 mm，1500×****×200 mm，2000×****×200 mm.
**The mechanical accuracy of the Z axis and the accuracy of focusing is closely related to the surface condition of the workpiece.
***Magnification is approximate value (It’s related to the size and the resolution of the computer display).
